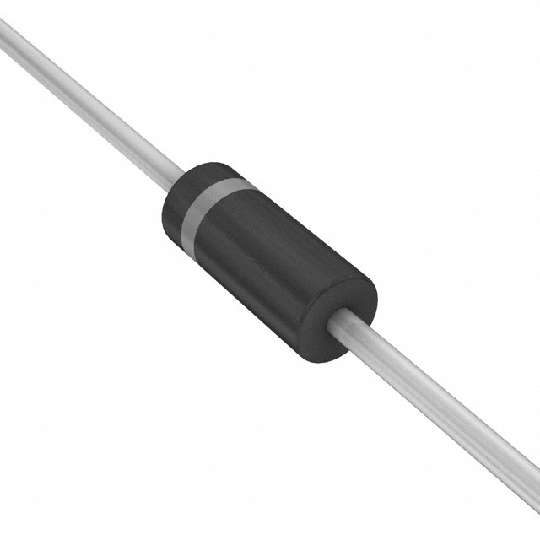

- 1N5356B - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC82458996
-
Category:Zener Diode, Zener
-
Package:DO-35-2
-
Datasheet:Datasheet 3D Model
-
Description:Diode Zener Single 19V 5% 5W 2Pin Case 017AA-01 Bulk
-
Stock Locations:
-
Availability:632 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.39
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This is a complete series of 5 Watt Zener diodes with tight limits and better operating characteristics that reflect the superior capabilities of silicon−oxide passivated junctions. All this in an axial lead, transfer−molded plastic package that offers protection in all common environmental conditions.
- Features
- •Zener Voltage Range −3.3 V to 200 V
- •ESD Rating of Class 3 (>16 kV) per Human Body Model
- •Surge Rating of up to 180 W @ 8.3 ms
- •Maximum Limits Guaranteed on up to Six Electrical Parameters
- •Pb−Free Packages are Available
1N5356B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-35-2 |
| Voltage Rating (DC) | 19.0 V |
| Capacitance Tolerance | ±5 % |
| Power Rating | 5.00 W |
| Forward Voltage | 1.2V @1A |
| Power Dissipation | 5 W |
| Test Current | 65 mA |
| Zener Voltage | 19 V |
| Maximum Forward Voltage (Max) | 1.2V @1A |
| Input Power (Max) | 5 W |
| Operating Temperature (Max) | 200 ℃ |
| Operating Temperature (Min) | 65 ℃ |
| Show | |
| Size-Length | 8.89 mm |
| Size-Width | 3.68 mm |
| Size-Height | 3.68 mm |
| Operating Temperature | -65℃ ~ 200℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
