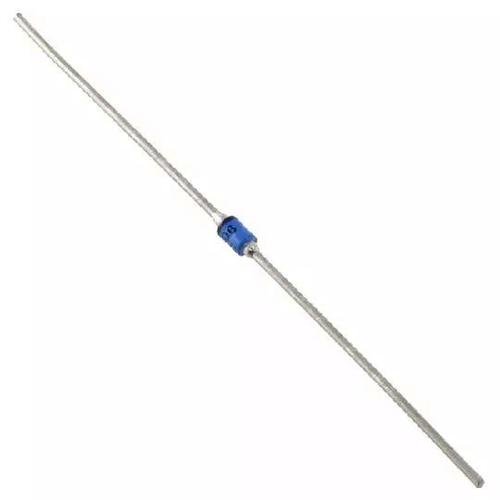

Image is for your reference only,please check specifications for details

1N5614 - Microsemi
Manufacturer:
Microsemi
ManyChip's Part#:
MC35080833
Category:
Diode
Package:
Case A
Datasheet:
Datasheet 3D Model
Description:
1N5614 Series 200V 1A Axial Through Hole Standard Recovery Glass Rectifier
Stock Locations:
Availability:
2,117 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.96

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
This “standard recovery” rectifier diode series is military qualified to MIL-PRF-19500/427 and is ideal for high-reliability applications where a failure cannot be Tolerated. These industry-recognized 1.0 Amp rated rectifiers for working peak reverse voltages from 200 to 1000 volts are hermetically sealed with voidless glass construction using an internal “Category I” metallurgical bond. These devices are also available in surface mount MELF package configurations by adding a “US” suffix (see separate data sheet for 1N5614US thru 1N5622US). Microsemi also offers numerous other rectifier products to meet higher and lower current ratings with various recovery time speed requirements including fast and ultrafast device types in both through-hole and surface mount packages.
FEATURES
• Popular JEDEC registered 1N5614 to 1N5622 series
• Voidless hermetically sealed glass package
•Triple-Layer Passivation
•Internal “Category I”Metallurgical bonds
• Working Peak Reverse Voltage 200 to 1000 Volts.
• JAN, JANTX, JANTXV, and JANS available per MIL PRF-19500/427
• Surface mount equivalents also available in a square end-cap MELF configuration with “US” suffix (seeseparate data sheet for 1N5614US thru 1N5622US)
