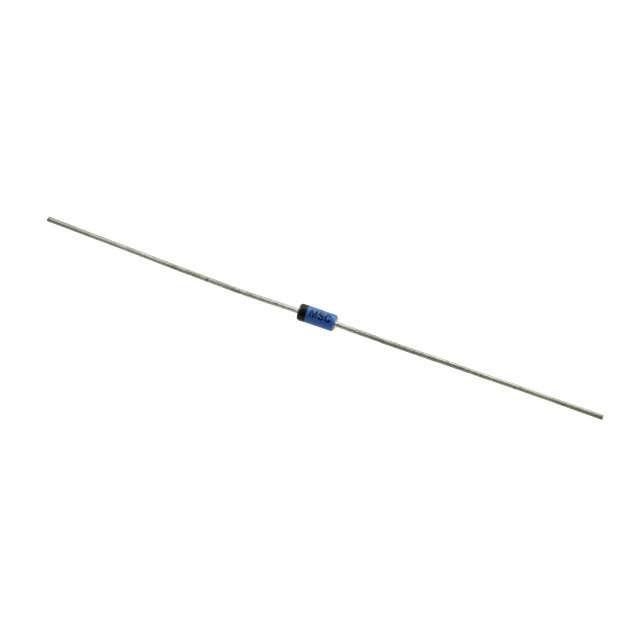

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The popular 1N821 thru 1N829 series of Zero-TC Reference Diodes provides a selection of both 6.2 V and 6.55 V nominal voltages and temperature coefficients to as low as 0.0005%/oC for minimal voltage change with temperature when operated at 7.5 mA. These glass axial leaded DO-7 reference diodes are also available in JAN, JANTX, JANTXV, and JANS military qualifications. Microsemi also offers numerous other Zener Reference Diode products for a variety of other voltages up to 200 V.
- FEATURES
- • JEDEC registered 1N821 thru 1N829 series
- • Internal metallurgical bonds
- • Double anode option with 1N822 and 1N824 selection
- • Reference voltage selection of 6.2 V & 6.55 V +/-5% with further tight tolerance options at nominal of 6.35 V • 1N821, 823, 825, 827 and 829 also have military qualification to MIL-PRF-19500/159 up to the JANS level by adding JAN, JANTX, JANTXV, or JANS prefixes to part numbers as well as the “-1” suffix, e.g. JANTX1N829-1, etc.
- • Radiation Hardened devices available by changing “1N” prefix to “RH”, e.g. RH827, RH 829, RH829A, etc. Also consult factory for “RH” data sheet brochure
- • Military surface mount equivalents also available in DO-213AA with UR-1 suffix and JAN, JANTX, or JANTXV prefix, e.g. JANTX1N829UR-1 (see separate data sheet)
- • Also available in smaller axial-leaded DO-35 package (see separate data sheet)
- APPLICATIONS / BENEFITS
- • Provides minimal voltage changes over a broad temperature range
- • For instrumentation and other circuit designs requiring a stable voltage reference
- • Maximum temperature coefficient selections available from 0.01%/ºC to 0.0005%/ºC
- • Tight voltage tolerances with nominal reference voltages of 6.35 V available by adding tolerance 1%, 2%, 3%, etc. after the part number for identification e.g. 1N827-2%, 1N829A -1%, 1N829-1-1%, etc.
- • Flexible axial-lead mounting terminals
- • Nonsensitive to ESD per MIL-STD-750 Method 1020
1N822 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | DO-7 |
| Capacitance Tolerance | ±5 % |
| Zener Voltage | 6.2 V |
| Input Power (Max) | 500 mW |
| Show | |
| Operating Temperature | -65℃ ~ 175℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | |
| Lead-Free Status |
