Description

The 1SMA series unidirectional Zener Transient Voltage Suppressor Diode designed to protect voltage sensitive components from high voltage and high energy transients. It has excellent clamping capability, high surge capability, low Zener impedance and fast response time.
5 to 78V Working peak reverse voltage range
6.7 to 91.25V Standard Zener breakdown voltage range
400W @ 1ms Peak power
ESD rating of Class 3 (>16kV) per human body model
<1ns Response time
-65 to 150°C Operating temperature range

Show

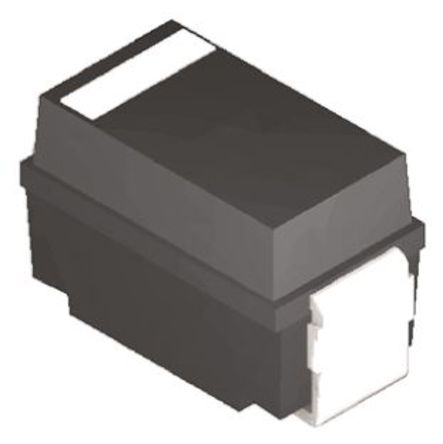

1SMA10CAT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMA
Voltage Rating (DC)	10.0 V
Power Rating	400 W
Halogen Free Status	Halogen Free
Breakdown Voltage	11.1 V
Number of Positions	2 Position
Power Dissipation	400 W
Clamping Voltage	17 V
Max Repetitive Reverse Voltage (Vrrm)	10V
Test Current	1 mA
Max Breakdown Voltage	12.3 V
Peak Pulse Power	400 W
Min Breakdown Voltage	11.1 V
Reverse Breakdown Voltage	11.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	Show
Size-Length	4.57 mm
Size-Width	2.92 mm
Size-Height	2 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
