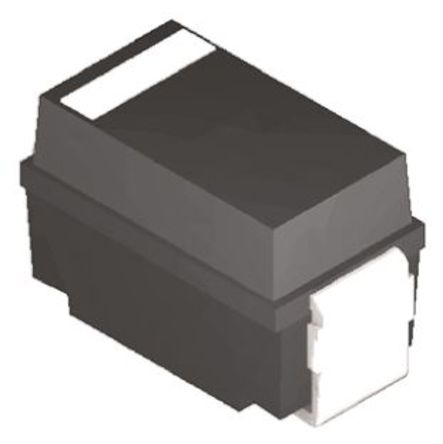

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**400W Zener Transient Voltage Suppressor (Unidirectional)**
The ON Semiconductor SMA series of Zener Transient Voltage Suppressors is designed to protect voltage sensitive components from damage caused by high voltage, high energy transients. They have excellent clamping capability with a high 400W surge capability and feature low zener impedance and fast response time.

Show

1SMA28AT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMA
Halogen Free Status	Halogen Free
Breakdown Voltage	32.8 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Clamping Voltage	45.4 V
Max Repetitive Reverse Voltage (Vrrm)	28V
Test Current	1 mA
Max Breakdown Voltage	34.4 V
Peak Pulse Power	400 W
Min Breakdown Voltage	31.1 V
Reverse Breakdown Voltage	31.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	Show
Size-Length	4.57 mm
Size-Width	2.92 mm
Size-Height	2.05 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
