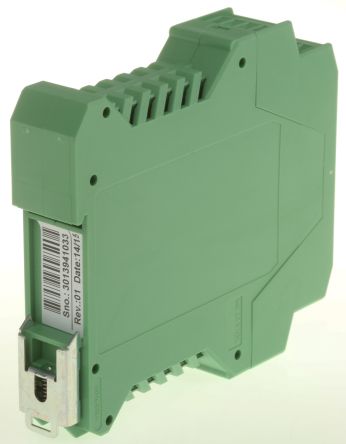

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Module DC-DC 12V/24VIN 1-OUT 48V 0.7A 12-Pin
2320021 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 12 Pin |
| Case/Package | Module |
| Power Rating | 34 W |
| Number of Outputs | 1 Output |
| Output Voltage | 48 V |
| Output Current | 0.7 A |
| Isolation Voltage | 1.5 kV |
| Input Voltage (Max) | 24 V |
| Input Voltage (Min) | 12 V |
| Output Current (Max) | 700 mA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Input Voltage | 10V ~ 32V |
| Show | |
| Size-Length | 4.21 in |
| Size-Width | 22.5 mm |
| Size-Height | 99 mm |
| Weight | 200 g |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8504407001 |
| ECCN Code | EAR99 |
