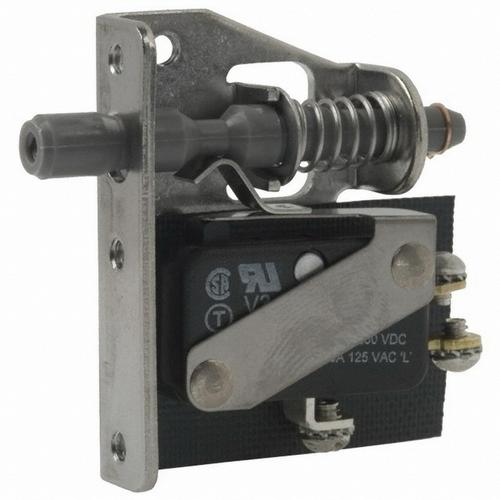

Image is for your reference only,please check specifications for details
- 23AC2 - Honeywell
-
Manufacturer:Honeywell
-
ManyChip's Part#:MC30954296
-
Category:Interlock Switch, Switch Safety Interlock
-
Package:125
-
Datasheet:Datasheet 3D Model
-
Description:Switch Safety Interlock N.O./N.C. SPDT Rod 15A 250VAC 250VDC 248.57VA Screw Screw Mount
-
Stock Locations:
-
Availability:592 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 37.06
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- AC Series Door Switch, 15 A Current Rating
- These switches are designed to cut power when a service door or drawer is opened, helping to protect personnel and equipment. The DM Series of door interlock switches are designed with an attractive yet rugged snap-in panel mount design for easy installation.
- ** Features**
- * Pull to Cheat Option Available (Switch Resets When Door Is Closed)
- * DM Versions Offer Quick Connect Terminals Where the Others Offer Screw Terminals
23AC2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Chassis, Screw Terminals |
| Case/Package | 125 |
| Voltage Rating (DC) | 125 V |
| Actuator Type | Rod |
| Voltage Rating (AC) | 125 V |
| Current Rating | 15A (AC), 500mA (DC) |
| Contacts Type | SPDT |
| Number of Positions | 2 Position |
| Contact Current Rating | 15.0 A |
| Current Rating (Max) | 15A @250VAC |
| Input Power (Max) | 248.57 VA |
| Operating Temperature (Max) | 82 ℃ |
| Operating Temperature (Min) | -53 ℃ |
| Voltage Rating | 250 VAC |
| Voltage Rating (DC Max) | 250 V |
| Voltage Rating (AC Max) | 250 V |
| Show | |
| Size-Length | 38.1 mm |
| Size-Height | 45.97 mm |
| Operating Temperature | -53℃ ~ 82℃ |
| Housing Material | Polyester |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536509055 |
| ECCN Code | EAR99 |
