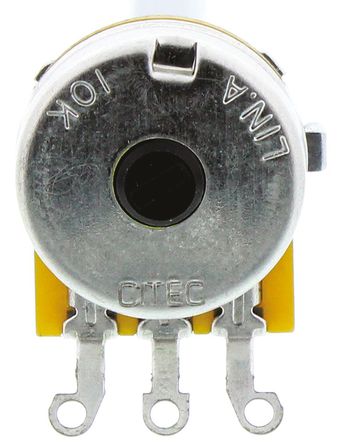

- 23ESA103MMF50NF - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC37942669
-
Category:Potentiometer
-
Package:25mm Dia.
-
Datasheet:Datasheet 3D Model
-
Description:Res Carbon Film POT 10KΩ 20% 0.4W 1(Elec)/1(Mech)Turn 6.35mm (60.7 X 20.4 X 25.2mm) Pin Panel Mount
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 23ESA series from TE connectivity are single turn spindle operated potentiometers. These potentiometers are standard linear types which can be tailored to suit more specific requirements. The potentiometers are available with printed carbon resistance, various bush lengths in metal or plastic and insulated shafts up to 50mm in length.
- Resistance range of 1Kohm to 1Mohm
- ±20% tolerance
- Rated power dissipation at 40°C is 0.4W
- Mounting bracket
- Dual gang and dual concentric Styles
- Diecast metal bush available
23ESA103MMF50NF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Panel |
| Case/Package | 25mm Dia. |
| Voltage Rating (DC) | 500 V |
| Voltage Rating (AC) | 500 V |
| Capacitance Tolerance | ±20 % |
| Power Rating | 0.4 W |
| Resistance | 10 KΩ |
| Resistance Tolerance | ±20 % |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating | 500 V |
| Show | |
| Size-Length | 60.7 mm |
| Size-Width | 20.4 mm |
| Size-Height | 25.2 mm |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8533408070 |
| ECCN Code | EAR99 |
