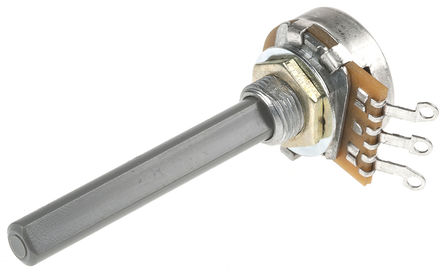

Image is for your reference only,please check specifications for details
- 23ESA104MMF50NF - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC35797503
-
Category:Potentiometers
-
Package:25mm Dia.
-
Datasheet:Datasheet 3D Model
-
Description:Переключатель с углом поворота 100 кОм, предельная нагрузка 20%, мощность 2/5 Вт, диаметр контакта 6,35 мм (размеры корпуса 60,7 × 20,4 × 25,2 мм), монтаж по панели с контактами.
-
Stock Locations:
-
Availability:371 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.57
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Серия 23ESA от компании TE Connectivity представляет собой переключатели с одним поворотом шпинделя. Эти переключатели имеют линейный тип и могут быть адаптированы для удовлетворения более специфических требований. Переключатели доступны с углеродным сопротивлением, различной длиной металлических или пластиковых поршней, а также с изолированными валами длиной до 50 мм.
- Диапазон сопротивления от 1 кОм до 1 Мо.
- Точность измерения ±20%.
- Номинальная площадь рассеяния тепла при температуре 40°C составляет 0,4 Вт.
- Имеется поддержка монтажа на кронштейны.
- Доступны модели с двойным концентрическим расположением контактов.
- Поршни из листового металла.
23ESA104MMF50NF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Solder |
| Case/Package | 25mm Dia. |
| Voltage Rating (DC) | 500 V |
| Voltage Rating (AC) | 500 V |
| Capacitance Tolerance | ±20 % |
| Power Rating | 0.4 W |
| Resistance | 100 kΩ |
| Resistance Tolerance | ±20 % |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating | 500 V |
| Show | |
| Size-Length | 60.7 mm |
| Size-Width | 20.4 mm |
| Size-Height | 25.2 mm |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
