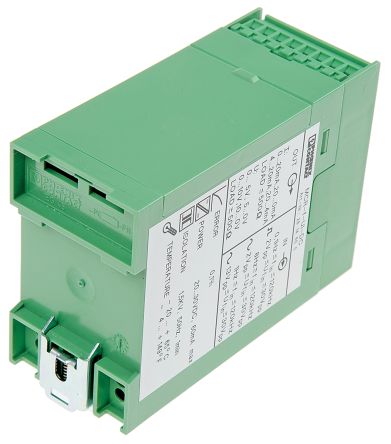

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The new MCR-F generation of frequency transducers enables the user to measure frequencies of 0.1 Hz...120 kHz. The desired input range can be freely selected.
- On the input side, all common frequency transmitter signals can be measured in 2-, 3- and 4-conductor technology. Signal sources that can be connected are, for example. 3-way isolation between signal input, signal output and supply allow interference-free transmission of signals. In addition to an analog output for standard signals, there is also a switching output for interrupt processing for example. The transmission performance of the frequency transducer can be set at the front via the membrane keypad. The incoming measured frequency value or the output standard signals can be read off the LCD display.
- **Features:**
- * Frequencies of 0.1 Hz...120 kHz
- * Analog and Switching Output
- * 3-Way Isolation
- * Can Be Programmed Using the Membrane Keypad
- * Display of Input and Output Signal
2814605 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw, DIN Rail |
| Case/Package | 120 |
| Current Rating | 60 mA |
| Operating Temperature (Max) | 65 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating | 30 V |
| Supply Voltage | 20VDC ~ 30VDC |
| Show | |
| Size-Length | 3.0 in |
| Size-Width | 1.8 in |
| Size-Height | 4.3 in |
| Color | Green |
| Operating Temperature | -20℃ ~ 65℃ |
| Product Lifecycle Status | Obsolete |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8543704000 |
| ECCN Code | EAR99 |
