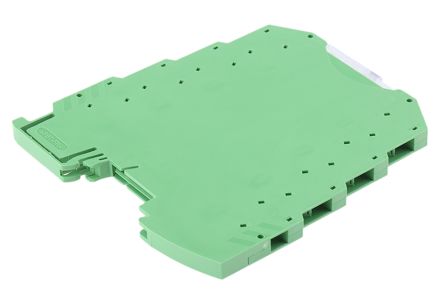

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 6.2 mm wide configurable 3-way threshold value switch is a monitor control relay (MCR) and is used to control and monitor analog standard signals from sensors and other sources of voltage or current.
2864480 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Snap-In |
| Current Rating | 14 A |
| Number of Channels | 1 Channel |
| Current Rating (Max) | 2 A |
| Coil Voltage (DC) | 24 V |
| Switching Current (Max) | 2 A |
| Operating Temperature (Max) | 65 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Supply Voltage | 24 VDC |
| Show | |
| Size-Length | 102.5 mm |
| Size-Width | 6.2 mm |
| Size-Height | 93.1 mm |
| Color | Green |
| Operating Temperature | -20℃ ~ 65℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8538903000 |
| ECCN Code | EAR99 |
