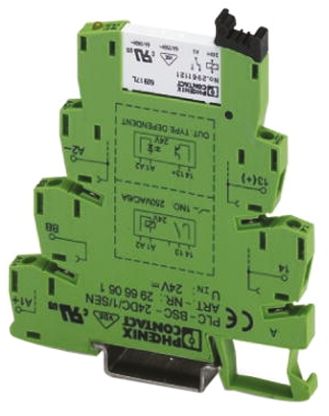

Image is for your reference only,please check specifications for details
- 2966317 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC33555993
-
Category:Industrial Relay
-
Package:Module
-
Datasheet:Datasheet 3D Model
-
Description:Relay/Terminal Block Module; 24VDC, 9mA Input; 1 NO Contact; Screw Conn.; DIN Mnt
-
Stock Locations:
-
Availability:245 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 15.71
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **PLC-RSC Series**
- PLC Interface single- and double-pole relays, and opto-couplers, having the same profile. This allows the modules to be installled in any configuration with a common bridging system and using the same accessories. The V8 adapter connects 8 relays or opto-couplers to a 15 way D-SUB cable.
2966317 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Case/Package | Module |
| Voltage Rating (DC) | 36 V |
| Voltage Rating (AC) | 30 V |
| Current Rating | 6 A |
| Contacts Type | SPST-NO |
| Load Current | 6 A |
| Input Current | 9 mA |
| Contact Current Rating | 0.05 A |
| Coil Voltage | 24 VDC |
| Coil Current | 9 mA |
| Coil Resistance | 2.66 KΩ |
| Input Voltage (Max) | 24 VDC |
| Current Rating (Max) | 0.05 A |
| Coil Voltage (DC) | 24 V |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating (DC Max) | 36 V |
| Voltage Rating (AC Max) | 30 V |
| Input Voltage | 24 VDC |
| Show | |
| Size-Length | 80 mm |
| Size-Width | 94 mm |
| Size-Height | 80 mm |
| Contact Material | Gold Plating |
| Weight | 0.536159824572 kg |
| Operating Temperature | -25℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
