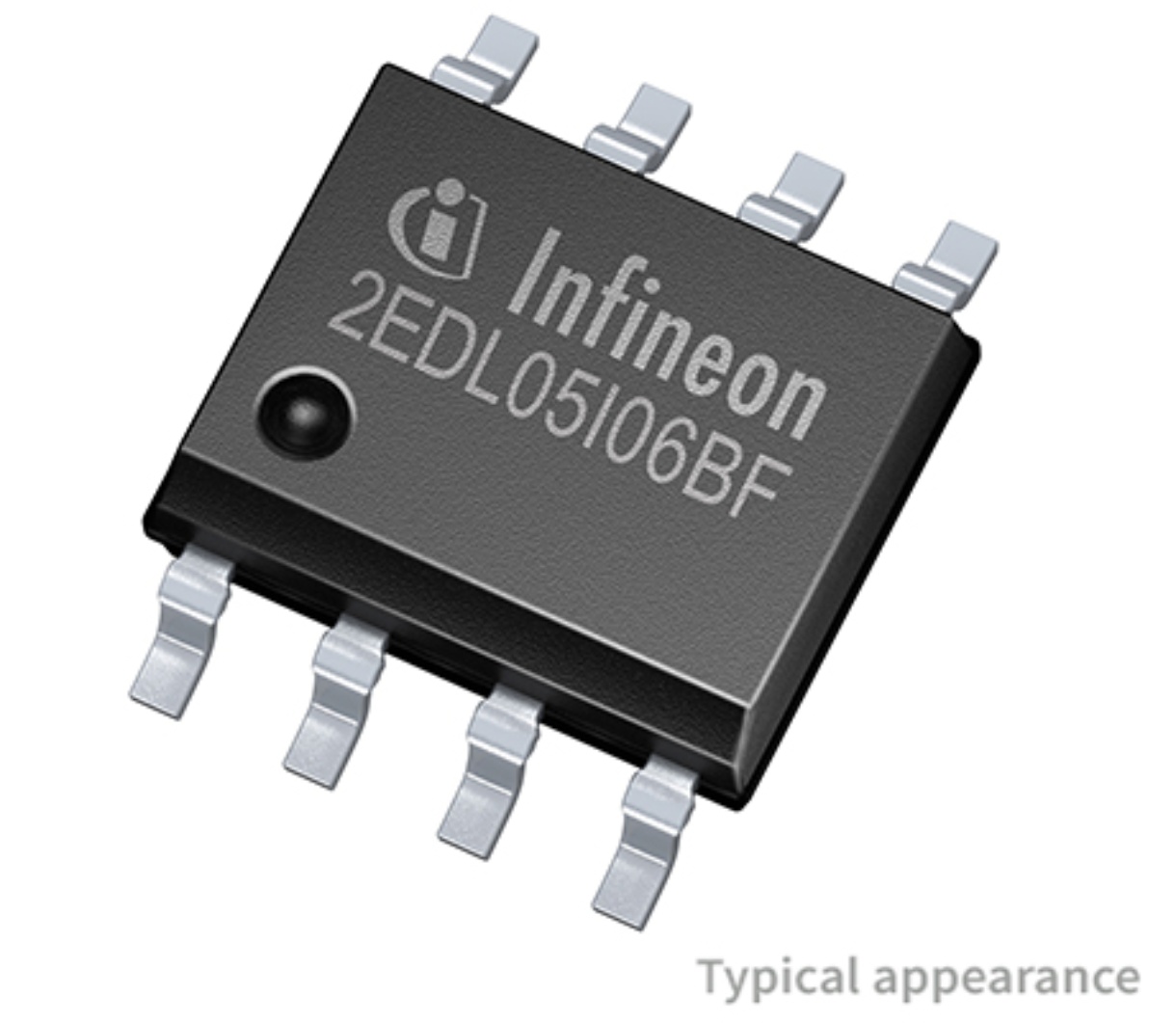

Image is for your reference only,please check specifications for details

2EDL05I06BF - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC114153503
Package:
PG-DSO-8
Datasheet:
Datasheet 3D Model
Description:
EiceDRIVER™ Compact - Optimized 600V half bridge gate driver IC with LS-SOI technology to control IGBTs
Stock Locations:
Availability:
251 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.63

Updated at 13/02/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Summary of Features:
Individual control circuits for both outputs
Filtered detection of under voltage supply
All inputs clamped by diodes
Off line gate clamping function
Asymmetric undervoltage lockout thresholds for high side and low side
Insensitivity of the bridge output to negative transient voltages up to -50V given by SOI-technology
Ultra fast bootstrap diode
Benefits:
Space saving package
Improved energy efficiency

Show
