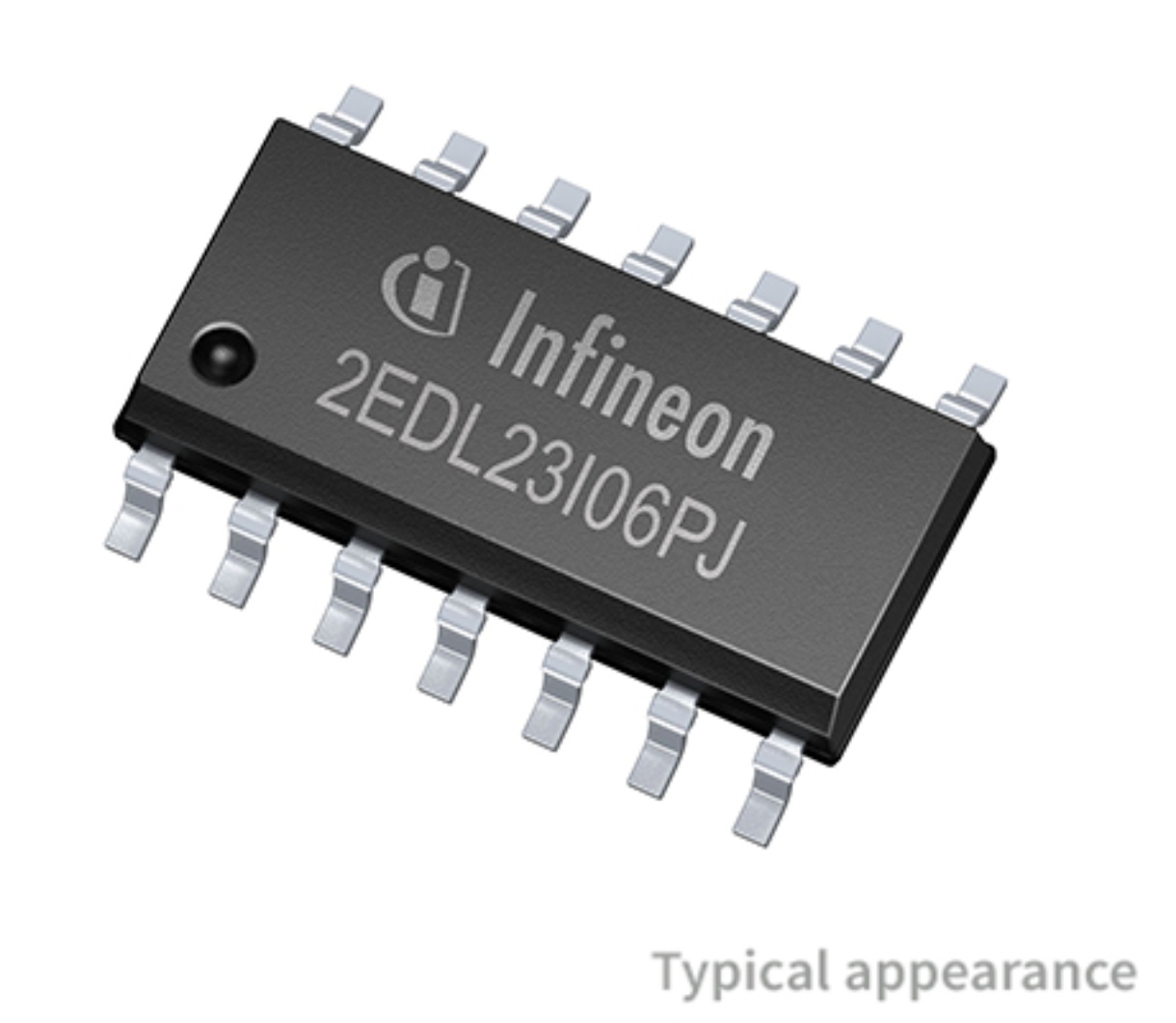

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Overcurrent comparator
- Enable function, Fault indicator
- Individual control circuits for both outputs
- Filtered detection of under voltage supply
- All inputs clamped by diodes
- Off line gate clamping function
- Asymmetric undervoltage lockout thresholds for high side and low side
- Insensitivity of the bridge output to negative transient voltages up to -50V given by SOI-technology
- Ultra fast bootstrap diode
- Benefits:
- Space saving package
- Improved energy efficiency
2EDL23I06PJ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | PG-DSO-14 |
| Number of Outputs | 2 Output |
| Fall Time (Max) | 30 ns |
| Fall Time (Max) | 80 ns |
| Operating Temperature (Max) | 95 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 8.75 mm |
| Size-Width | 3.9 mm |
| Size-Height | 1.75 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | PB free |
| ECCN Code | EAR99 |
