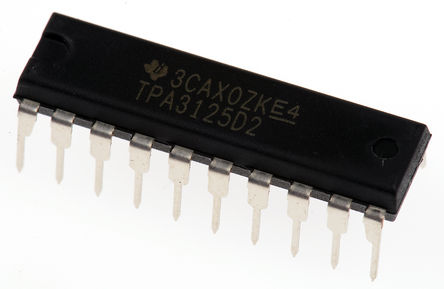

Image is for your reference only,please check specifications for details
- TPA3125D2N - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC7920846
-
Category:Audio Amplifier IC
-
Package:PDIP-20
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS TPA3125D2N Audio Power Amplifier, D, 2Channel, 20W, 10V to 26V, DIP, 20Pins
-
Stock Locations:
-
Availability:4,505 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.61
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPA3125D2N is a 10W Stereo Class-D Audio Amplifier with SE outputs for driving stereo speakers in a single-ended configuration or a mono speaker in a bridge-tied-load configuration. The TPA3125D2 can drive stereo speakers as low as 4R. The efficiency of the TPA3125D2 eliminates the need for an external heat sink when playing music. The gain of the amplifier is controlled by two gain select pins. The gain selections are 20, 26, 32, 36dB. It operates in AD mode. There are two main configurations that may be used. For stereo operation, the TPA3125D2 should be configured in a single-ended (SE) half-bridge amplifier. For mono applications, TPA3125D2 may be used as a bridge-tied-load (BTL) amplifier. The traditional class-D modulation scheme, which is used in the TPA3125D2 BTL configuration, has a differential output where each output is 180 degrees out of phase and changes from ground to the supply voltage, VCC.
- 10W/ch (stereo SE) into an 8R load from a 24V supply
- 20W/ch (stereo SE) into an 8R load from a 24V supply
- Operates from +24V LCD backlight supply
- Efficient Class-D operation eliminates need for heat sinks
- Four selectable, fixed gain settings
- Single-ended analogue inputs
- Thermal and short-circuit protection with auto recovery
- Advanced power-off pop reduction
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TPA3125D2N Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 20 Pin |
| Case/Package | PDIP-20 |
| Power Rating | 10 W |
| Number of Circuits | 1 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 20 Position |
| Power Dissipation | 1870 mW |
| Output Power | 20 W |
| Gain | 36 dB |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1870 mW |
| Supply Voltage | 10V ~ 26V |
| Supply Voltage (Max) | 26 V |
| Supply Voltage (Min) | 10 V |
| Show | |
| Size-Length | 26.92 mm |
| Size-Width | 6.6 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
