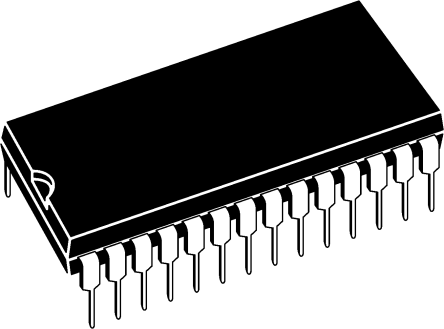

Image is for your reference only,please check specifications for details

Z86E3016PSG - Zilog
Manufacturer:
Zilog
ManyChip's Part#:
MC20998754
Category:
Microcontroller, MCU IC
Package:
DIP-28
Datasheet:
Datasheet 3D Model
Description:
ZILOG Z86E3016PSG 8Bit Microcontroller, One Time Programmable, Z8, 12MHz, 4KB, 237Byte, 28Pins, DIP
Stock Locations:
Availability:
267 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.28

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Z86E3016PSG is a single-chip One-time programmable (OTP) 8-bit Microcontroller featuring enhanced wake-up circuitry, programmable watch-dog timers, low noise EMI options and easy hardware/software system expansion capability. Four basic address spaces support a wide range of memory configurations. The designer has access to three additional control registers that allow easy access to register mapped peripheral and I/O circuits. For applications demanding powerful I/O capabilities, the Z86E30 have 24 pins dedicated input and output. These lines are grouped into four ports, eight lines per port and are configurable under software control to provide timing, status signals and parallel I/O with or without handshake and address/data bus for interfacing external memory.
Software enabled watch-dog timer (WDT)
Push-pull/open-drain programmable on Port 0, Port 1 and Port 2
Auto latches
Auto power-on reset (POR)
60mW Low power consumption
0.75µs Fast instruction pointer
Two standby modes - STOP and HALT
Digital inputs CMOS levels, Schmitt-triggered
Software programmable low EMI mode
Two programmable 8-bit counter/timers each with a 6-bit programmable prescaler
Six vectored, priority interrupts from six different sources
Two comparators
On-chip oscillator that accepts a crystal, ceramic resonator, LC, RC or external clock drive

Show

Z86E3016PSG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	DIP-28
Frequency	16 MHz
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Number of Positions	28 Position
Clock Speed	12.0 MHz, 16.0 MHz
RAM Memory Size	237 x 8
Number of Bits	8 Bit
Number of I/O Pins	24 IO
Access Time	16.0 µs
Core Architecture	Z8
Memory Size	4000 B
Number of Inputs and Outputs	24 Input IO
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3.5 V
	Show
Size-Length	37.34 mm
Size-Width	14.1 mm
Size-Height	3.94 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
