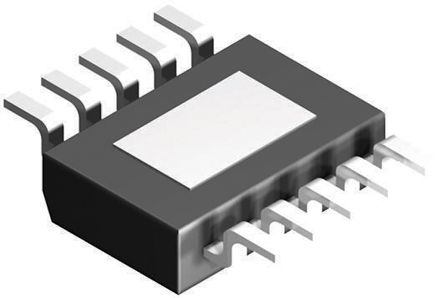

Image is for your reference only,please check specifications for details

TPS40211DGQ - TI
Manufacturer:
TI
ManyChip's Part#:
MC30091233
Category:
DC to DC Converter
Package:
PowerPad-MSOP-10
Datasheet:
Datasheet 3D Model
Description:
Current Mode PWM Controller 5V to 250V 400mA 35kHz to 1000kHz 10Pin HVSSOP EP Tube
Stock Locations:
Availability:
249 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.03

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS40211DGQ is a wide input range current-mode Boost Controller suitable for topologies which require a grounded source N-channel FET including boost, flyback, SEPIC and various LED Driver applications. The device features include programmable soft-start, overcurrent protection with automatic retry and programmable oscillator frequency. current-mode control provides improved transient response and simplified loop compensation. The main difference between the two parts is the reference voltage to which the error amplifier regulates the FB pin.
Adjustable oscillator frequency
Fixed frequency current mode control
Internal slope compensation
Integrated low-side driver
Programmable closed-loop soft-start
Overcurrent protection
External synchronization capable
Low current disable function
Green product and no Sb/Br

Show

TPS40211DGQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	PowerPad-MSOP-10
Frequency	1000 kHz
Supply Voltage (DC)	4.50V (min)
Number of Outputs	1 Output
Output Voltage	5V ~ 250V
Output Current	400 mA
Supply Current	2.5 mA
Number of Positions	10 Position
Power Dissipation	1730 mW
Quiescent Current	1.50 mA
Number of Regulated Outputs	1 Output
Switching Frequency	1 MHz
Thermal Shutdown	No
Topology	Boost
Duty Cycle	95 %
Input Voltage (Max)	52 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	9 V
Output Voltage (Min)	5 V
Maximum Duty Cycle	95 %
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 52V
Supply Voltage (Max)	52 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	1.02 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
