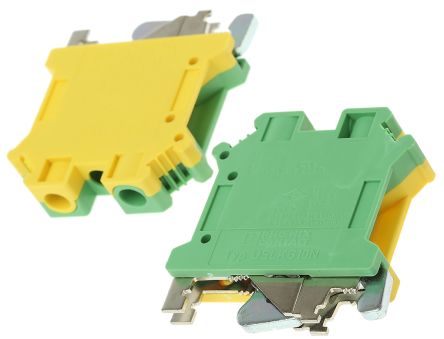

Image is for your reference only,please check specifications for details

3003923 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC17381664
Category:
Terminal Block, Connector Terminal
Datasheet:
Datasheet 3D Model
Description:
PHOENIX CONTACT 3003923 DIN Rail Mount Terminal Block, 2Positions, 20AWG, 6AWG, 16mm², Screw, 57A
Stock Locations:
Availability:
56 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.48

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 3003923 is a 2-position 1-level green-yellow Ground Modular Terminal Block with a polyamide insulator, the M4 screw connection and the NS 35/7,5, NS 35/15, NS 32 mounting. This USLKG 10 N terminal block has easy operation and use and can be snapped onto the DIN rail. It accepts 20 to 6AWG wire range.
10mm Stripping length
UL94V-2 Flammability rating

Show

3003923 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail
Pin Pitch	10.2 mm
Number of Contacts	2 Contact
Wire Gauge	6AWG ~ 24AWG
Voltage Rating (AC)	400 V
Current Rating	76 A
Number of Rows	2 Row
Number of Circuits	1 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	2 Position
Current Rating (Max)	76 A
Voltage Rating	750 V
	Show
Size-Length	42.5 mm
Size-Width	10.2 mm
Size-Height	54.5 mm
Housing Color	Green, Yellow
Color	Green, Yellow
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536904000
ECCN Code	EAR99
