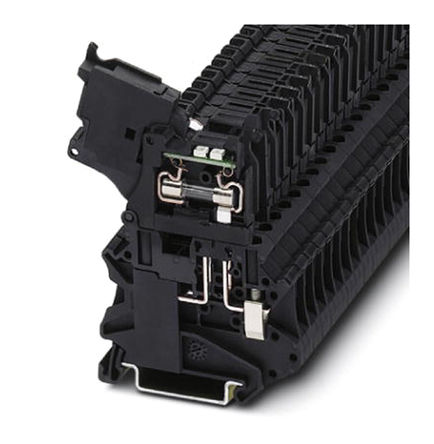

Image is for your reference only,please check specifications for details
- 3074172 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC90675931
-
Category:Terminal Block, Connector Terminal
-
Datasheet:Datasheet 3D Model
-
Description:Fuse modular terminal block, Number of positions: 1, Connection method: Screw connection, Cross section: 0.14mm²- 6mm², AWG: 26 - 10, Nominal current: 6.3A, Nominal voltage: 24V, Width: 6.2mm, Fuse type: G / 5 x 20, Fuse type: Glass / ceramics / ..., Mounting type: NS 35/7,5, NS 35/15, Color: gray
-
Stock Locations:
-
Availability:221 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 593.52
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Fuse modular terminal block, Number of positions: 1, Connection method: Screw connection, Cross section: 0.14 mmA²- 6 mmA², AWG: 26 - 10, Nominal current: 6.3 A, Nominal voltage: 24 V, Width: 6.2 mm, Fuse type: G / 5 x 20, Fuse type: Glass / ceramics / ..., Mounting type: NS 35/7,5, NS 35/15, Color: gray
3074172 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Contacts | 2 Contact |
| Wire Gauge | 10AWG ~ 26AWG |
| Current Rating | 6.3 A |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 2 Position |
| Current Rating (Max) | 6.3 A |
| Load Current (Max) | 6.3 A |
| Voltage Rating | 24 V |
| Operating Voltage (Max) | 24 V |
| Show | |
| Size-Length | 57.8 mm |
| Size-Width | 6.2 mm |
| Housing Color | Gray |
| Color | Gray |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
