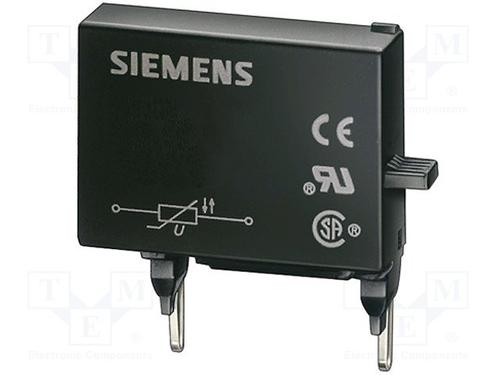

Image is for your reference only,please check specifications for details

3RT19161DG00 - Siemens Semiconductor
Manufacturer:
Siemens Semiconductor
ManyChip's Part#:
MC347621513
Category:
Relay Accessory
Datasheet:
Datasheet 3D Model
Description:
SIEMENS 3RT19161DG00 Suppresion Diode Module, Surge, 12VDC, 250VAC, for 3RT/3RH Contactors & Contactor Relays
Stock Locations:
Availability:
47 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.5

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 3RT19161DG00 is a surge Suppressor Diode Module. The surge suppressor is plugged onto the front of size contactors. Space is provided for them next to a Snap-On auxiliary switch block. A varistor is integrated in the timer module in order to damp opening surges in the contactor coil.
Integrated Surge Suppressor (varistor) for the Contactor Coil being Switched
12VDC Initial Rated Value
250VAC Final Rated Value

Show

3RT19161DG00 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
	Show
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
