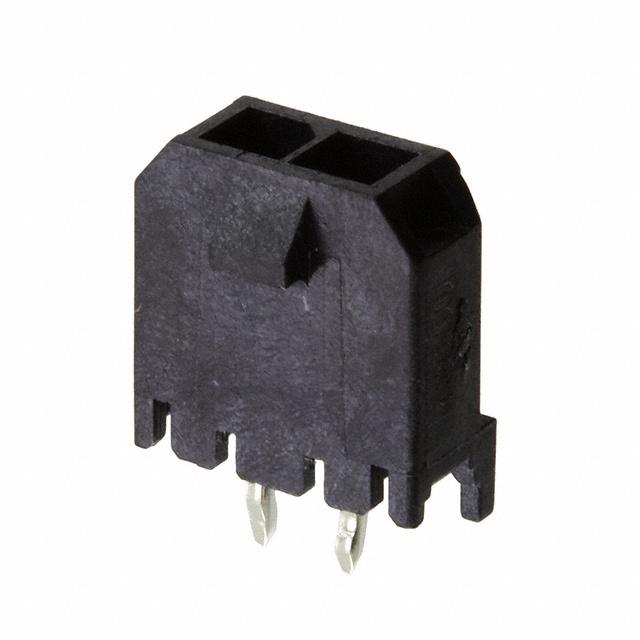

Image is for your reference only,please check specifications for details

436500215 - Molex
Manufacturer:
Molex
ManyChip's Part#:
MC6300611
Category:
Header, Receptacle
Package:
Through Hole
Datasheet:
Datasheet 3D Model
Description:
Conn Power HDR 2POS 3mm Solder ST Thru-Hole 2 Terminal 1Port Micro-Fit 3.0™ Tray
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

436500215 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Through Hole
Pin Pitch	3.00 mm
Number of Contacts	2 Contact
Gender	Male
Contact Plating	Tin
Voltage Rating (DC)	250 V
Current Rating	5.00 A
Number of Rows	1 Row
Glow Wire Compliant	Compliant
Halogen Free Status	Low Halogen
Orientation	Vertical
Number of Circuits	2 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	2 Position
Number of Mating Cycles	30 Cycle
Current Rating (Max)	8.5A/触头
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	600 V
Maximum Contact Resistance (Max)	10 mΩ
	Show
Size-Length	9.65 mm
Size-Width	4.37 mm
Size-Height	9.9 mm
Mated Height	6.98 mm
Housing Color	Black
Color	Black
Contact Material	Brass Alloy
Housing Material	Thermoplastic
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
