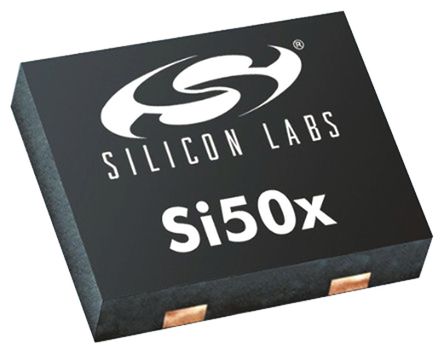

Image is for your reference only,please check specifications for details
- 501HCA12M0000DAF - Silicon Labs
-
Manufacturer:Silicon Labs
-
ManyChip's Part#:MC149182607
-
Category:Oscillator
-
Package:SMD-4
-
Datasheet:Datasheet 3D Model
-
Description:SMD Crystal Oscillator 12MHz 1.8V/2.5V/3.3V 15pF 4Pin DFN Cut Tape
-
Stock Locations:
-
Availability:323 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.67
Updated at 28/07/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 12MHz CMEMS® LVCMOS Oscillator 1.7V ~ 3.6V Enable/Disable 4-SMD, No Lead
501HCA12M0000DAF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SMD-4 |
| Frequency | 12 MHz |
| Supply Voltage (DC) | 1.70V (min) |
| Frequency Stability | ±20 ppm |
| Frequency Tolerance | ±20 ppm |
| Load Capacitance | 15 pF |
| Maximum Duty Cycle | 55 % |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Supply Voltage | 1.7V ~ 3.6V |
| Supply Voltage (Max) | 3.63 V |
| Supply Voltage (Min) | 1.71 V |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 2.5 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -20℃ ~ 70℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status |
