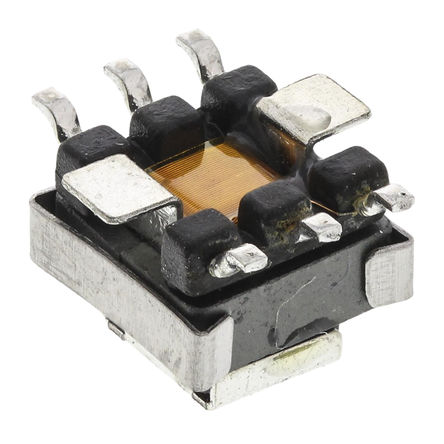

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 53200C is manufactured by Murata Power and is categorized in the Current Sense Transformers category. 53200C is described as XFRMR CURR SENSE 10A 1:200 SMD. Perfect Parts is a supplier of Transformers and other Miscellaneous.
53200C Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | 200 |
| Frequency | 50kHz ~ 500kHz |
| Current Rating | 10 A |
| Inductance | 8 mH |
| Input Current | 10 A |
| Isolation Voltage | 500 VAC |
| DC Resistance (DCR) | 7 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 8.3 mm |
| Size-Width | 7.2 mm |
| Size-Height | 5.4 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
