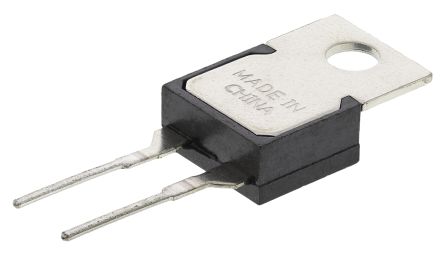

Image is for your reference only,please check specifications for details

67L080 - Sensata Technologies
Manufacturer:
Sensata Technologies
ManyChip's Part#:
MC9976107
Category:
Temperature Sensor
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
Single Trip Point Switch/Digital Sensor, Rectangular, Through Hole Mount, ROHS COMPLIANT, PACKAGE-2
Stock Locations:
Availability:
1,243 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.82

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 6700 series from Airpax are positive snap action, single pole single throw, sub-miniature bimetallic thermostat. This device provides accurate, reliable sensing and switching. The 6700 provides fast, positive response with excellent repeatability. The thermostat has a switch capability of upto 0.5A for 48VDC and achieves low level switching down to 0.001A to 0.020A at 5VDC for 100,000 cycles. It is primarily developed for thermal management applications on power supplies, the Airpax 6700 series is also ideally suited for use on crowded PC boards. Typical application include turning on indicator light, sounding an audible alarm, switch on a control circuit to send a message to a display screen or even switching a circuit to shut down a system.
Thermal conductivity is through terminals and the mounting bracket
Nickel plated copper (standard) or high pressure laminated plastic mounting bracket
TO-220 / Y-220 international electronic package standard
Ideal for surface and air sensing on PC boards and heat sinks
VDE approved with "P" bracket option
Gold plated contacts
Up to 20,000 life cycles at maximum standard amperage
Up to 100,000 life cycles at maximum gold contact amperage
Either close on rise (make) or open on rise (break) contact operations

Show

67L080 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Contacts Type	SPST-NC
Current Rating (Max)	1 A
Current Rating (DC)	0.5A @48V
Operating Temperature (Max)	130 ℃
Operating Temperature (Min)	40 ℃
Voltage Rating (DC Max)	48 V
Voltage Rating (AC Max)	120 V
Maximum Contact Resistance (Max)	50 mΩ
	Show
Color	Black
Operating Temperature	40℃ ~ 130℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536200020
ECCN Code	EAR99
