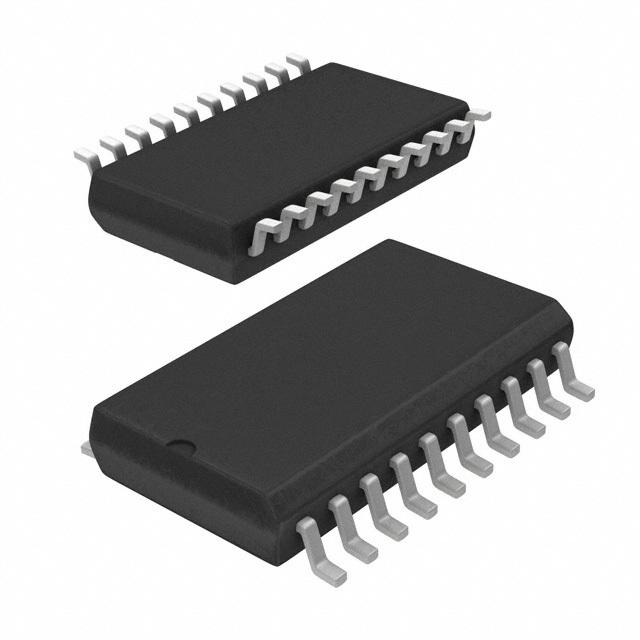

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The MF10 consists of 2 independent and extremely easy to use, general purpose CMOS active filter building blocks. Each block, together with an external clock and 3 to 4 resistors, can produce various 2nd order functions. Each building block has 3 output pins. One of the outputs can be configured to perform either an allpass, highpass or a notch function; the remaining 2 output pins perform lowpass and bandpass functions. The center frequency of the lowpass and bandpass 2nd order functions can be either directly dependent on the clock frequency, or they can depend on both clock frequency and external resistor ratios. The center frequency of the notch and allpass functions is directly dependent on the clock frequency, while the highpass center frequency depends on both resistor ratio and clock. Up to 4th order functions can be performed by cascading the two 2nd order building blocks of the MF10; higher than 4th order functions can be obtained by cascading MF10 packages.
Features
■ Easy to use
■ Clock to center frequency ratio accuracy ±0.6%
■ Filter cutoff frequency stability directly dependent on external clock quality
■ Low sensitivity to external component variation
■ Separate highpass (or notch or allpass), bandpass, lowpass outputs
■ fO x Q range up to 200 kHz
■ Operation up to 30 kHz
■ 20-pin 0.3" wide Dual-In-Line package
■ 20-pin Surface Mount (SO) wide-body package
