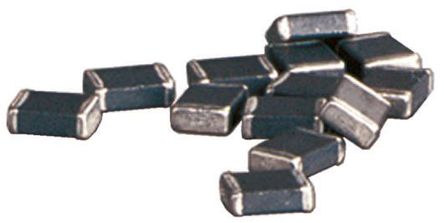

Image is for your reference only,please check specifications for details
- 742792011 - Wurth Electronics
-
Manufacturer:Wurth Electronics
-
ManyChip's Part#:MC19608703
-
Category:Ferrite
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:WURTH ELEKTRONIK 742792011 Ferrite Bead, 10Ω, 0805 [2012 Metric], 3A, 0.025Ω, ± 25%
-
Stock Locations:
-
Availability:2,096 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.22
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The WE-CBF series from Wurth Elektronik are surface mount EMI suppression ferrite beads. These ferrite beads offer excellent anti EMI properties and low DC resistance. WE-CBF ferrite beads can be soldered directly on printed circuit board.
- EIA 0402, 0603, 0805, 1206, 1210, 1806, 1812 chip sizes available
- Reliable Ni-Sn electrodes
- Impedance at 100MHz ranges from 5ohm to 27Kohm
- Rated current rating from 50mA to 6A
- DC Resistance ranges from 8mohm to 1.5ohm
- Operating temperature range -55°C to 125°C
- Suitable for reflow soldering process
742792011 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 2012 |
| Case/Package | 0805 |
| Current Rating | 3 A |
| Resistance | 30.0 mΩ |
| Test Frequency | 100 MHz, 1000 MHz |
| DC Resistance (DCR) | 25 mΩ |
| Current Rating (Max) | 3 A |
| Current Rating (DC) | 3 A |
| Accuracy | ±25 % |
| Resistance (DC Max) | 0.025 Ω |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.2 mm |
| Size-Height | 0.9 mm |
| Material | Ferrite |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
