Description
- The Wurth Elektronik WE-PD series are magnetic shielded power inductors. The inductance value ranges from 0.47µH to 1500µH.
- EIA 7332, 7345, 1030, 1050, 1245, 1260, 1280, 1210, 6033, 6050 case sizes available
- Magnetic shielding results in low leakage field
- High storage capacity
- Low self losses
- Highest possible current loading
- Operating temperature range -40°C to 125°C
- Suitable for reflow soldering process
- Available in metal and plastic base

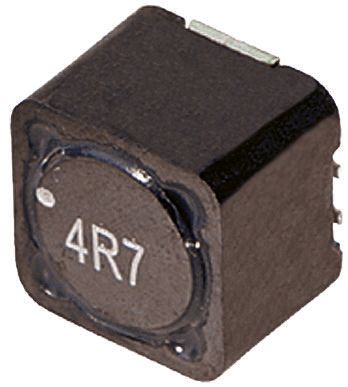

7447714022 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 10mm x 10mm x 5mm |
| Current Rating | 8.6 A |
| Capacitance Tolerance | ±30 % |
| Inductance | 2.2 µH |
| Self Resonant Frequency | 53 MHz |
| Part Family | WE-PD |
| Resistance | 6.80 mΩ |
| Resonant Frequency | 53.0 MHz |
| Inductance Tolerance | ±30 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | 8 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.008 Ω |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 10 mm |
| Size-Height | 5 mm |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
