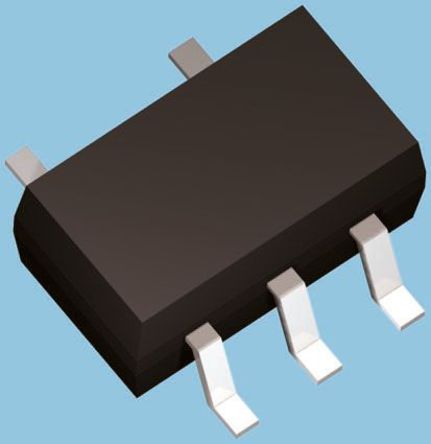

Image is for your reference only,please check specifications for details

74AHCT1G79GW - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC128209193
Category:
Flip Flop IC
Package:
SOT-353
Datasheet:
Datasheet 3D Model
Description:
IC AHCT/VHCT SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, PDSO5, 1.25MM, PLASTIC, MO-203, SOT-353-1, SC-88A, TSSOP-5, FF/Latch
Stock Locations:
Availability:
2,070 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.13

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74AHCT1G79GW is a single positive-edge trigger D-type Flip-flop with high-speed Si-gate CMOS technology. Information on the data input is transferred to the Q output on the low-to-high transition of the clock pulse. The D input must be stable one set-up time prior to the low-to-high clock transition for predictable operation. The AHCT device has TTL input switching levels and supply voltage range 4.5 to 5.5V.
Symmetrical output impedance
High noise immunity
Low power dissipation
Balanced propagation delays

Show

74AHCT1G79GW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-353
Frequency	70 MHz
Supply Voltage (DC)	4.50V (min)
Output Current	8 mA
Number of Channels	1 Channel
Number of Positions	5 Position
Number of Gates	1 Gate
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5.5.5 VDC
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	2.25 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
