Description
- The B82422A series SMT Inductor with ceramic or ferrite core and laser-welded winding. It has layer composition electro-plated copper/silver/tin (Cu/Ag/Sn) termination and copper tin (CuSn6) base. It is suitable for filtering of supply voltages, coupling and decoupling.
- High Q factor
- High resonance frequency
- Qualified to AEC-Q200
- Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
- 65 to 800mA Rated current range
- 0.0082 to 100µH Rated inductance range

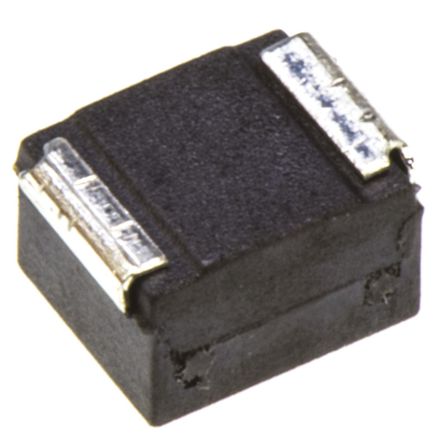

B82422A1103K100 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 3225 |
| Case/Package | 1210 |
| Current Rating | 180 mA |
| Capacitance Tolerance | ±10 % |
| Inductance | 10 µH |
| Self Resonant Frequency | 25 MHz |
| Q-Factor | 27.0 |
| Resistance | 1.60 Ω |
| Resonant Frequency | 25.0 MHz |
| Shielding | No |
| Inductance Tolerance | ±10 % |
| Test Frequency | 1 MHz |
| DC Resistance (DCR) | ≤1.6 Ω |
| Current Rating (DC) | 180 mA |
| Operating Temperature (Max) | 145 ℃ |
| Resistance (DC Max) | 1.6 Ω |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 2.50 mm |
| Size-Height | 2.1 mm |
| Weight | 50.0 mg |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
