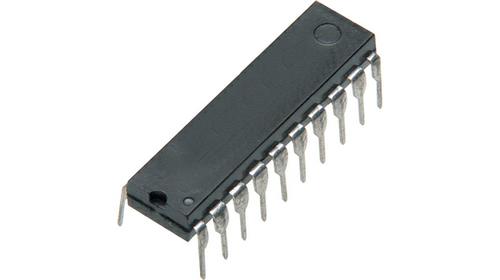

74HCT374N - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC148956166
Category:
Logic Control, Logic Gate IC
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
NXP 74HCT374N Flip-Flop, Tri State Non Inverted, Positive Edge, 74HCT374, D, 16ns, 48MHz, 6mA, DIP
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HCT374N is an octal D-type Flip-flop with positive edge-trigger and 3-state output. This high-speed Si-gate CMOS device is pin compatible with low power Schottky TTL (LSTTL). It features separate D-type inputs for each flip-flop and 3-state outputs for bus oriented applications. A clock and an OE input are common to all flip-flops. The 8 flip-flops will store the state of their individual D-inputs that meet the set-up and hold times requirements on the low-to-high CP transition. When OE is low, the contents of the 8 flip-flops are available at the outputs. When OE is high, the outputs go to the high impedance OFF-state. Operation of the OE input does not affect the state of the flip-flops. The 374 series is functionally identical to the 534 series, but has non-inverting outputs.
3-state Non-inverting outputs for bus oriented applications
8-bit Positive, edge-triggered register
Common 3-state output enable input
Independent register and 3-state buffer operation
Bus driver output capability
Complies with JEDEC standard No. 7A

Show

74HCT374N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP
Frequency	48 MHz
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Output Current	6 mA
Number of Circuits	8 Circuit
Number of Positions	20 Position
Number of Bits	8 Bit
Polarity	Non-Inverting
Number of Gates	8 Gate
Input Capacitance	3.50 pF
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5 V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
