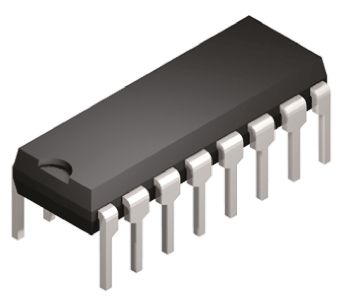

Image is for your reference only,please check specifications for details

74HCT4040N - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC135095307
Category:
Counter, Counter IC
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
NXP 74HCT4040N Binary Ripple Counter, HCT Family, 98MHz, 1 Gate, 1Input, 4.5V to 5.5V, DIP-16
Stock Locations:
Availability:
401 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.77

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HCT4040N is a 12-stage Binary Ripple Counter with a clock input (CP\\), an overriding asynchronous master reset input (MR) and twelve parallel outputs (Q0 to Q11). The counter advances on the high-to-low transition of CP\\. A high on MR clears all counter stages and forces all outputs low, independent of the state of CP\\. Each counter stage is a static toggle flip-flop. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
TTL Input levels
Complies with JEDEC standard No. 7A

Show

74HCT4040N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP
Digital Logic Level	CMOS
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Number of Positions	16 Position
Clock Speed	98 MHz
Number of Gates	1 Gate
Input Capacitance	3.50 pF
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	19.5 mm
Size-Width	6.48 mm
Size-Height	3.2 mm
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
