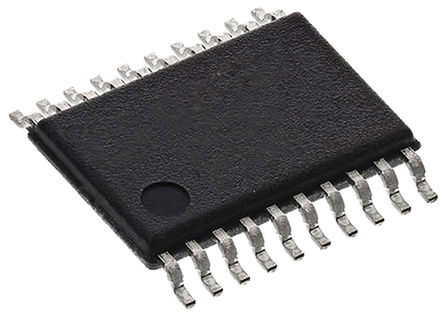

74LCX244MTCX - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC5019517
Category:
Logic Controller, Logic IC
Package:
TSSOP-20
Datasheet:
Datasheet 3D Model
Description:
* 5V tolerant inputs and outputs * 2.3V to 3.6V VCC specifications provided * 6.5ns tPD max (VCC = 3.3V), 10μA ICC max * Power down high impedance inputs and outputs * Supports live insertion/withdrawal * ±24mA output drive (VCC = 3V) * Implements patented noise/EMI reduction circuitry * Latch-up performance exceeds 500mA * ESD performance: Human body model > 2000V Machine model > 200V * Leadless DQFN Pb-Free package
Stock Locations:
Availability:
10,449 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.3

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74LCX244MTCX is a low voltage non-inverting Buffer/Line Driver with 3-state outputs. The device may be employed as a memory address driver, clock driver and bus-oriented transmitter/receiver. The LCX244 is designed for low voltage (2.5 or 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The LCX244 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
Power down high impedance inputs and outputs
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds 500mA
5V Tolerant inputs and outputs
6.5ns Propagation delay (tpd), 10µA ICCQ maximum
±24mA Output drive
Supports live insertion/withdrawal

Show

74LCX244MTCX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	TSSOP-20
Supply Voltage (DC)	2.00V (min)
Number of Outputs	8 Output
Number of Channels	8 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Quiescent Current	10 µA
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	6.5 mm
Size-Width	4.4 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	ECL99
