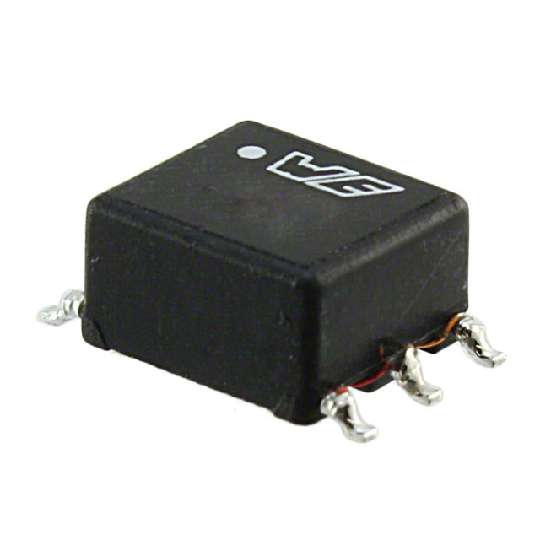

Image is for your reference only,please check specifications for details
- 760390013 - Wurth Electronics
-
Manufacturer:Wurth Electronics
-
ManyChip's Part#:MC10471827
-
Category:Transformer
-
Package:SMD6
-
Datasheet:Datasheet 3D Model
-
Description:Трансформатор тока 1:1,7, 2500 В перем. тока, сопр. пост. току первичной обмотки 0,28 Ом, вторичной — 0,47 Ом, индуктивность первичной обмотки 475 мкГн, ток первичной обмотки 150 мА, 6 выводов, SMD с выводами типа «крыло чайки».
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Трансформатор SMPS для прямоходовых и двухтактных преобразователей, применяемых в DC/DC преобразователях; изоляция 3125 В (среднекв.), 10 кГц, поверхностный монтаж.
760390013 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | SMD6 |
| Frequency | 10 kHz |
| Current Rating | 150 mA |
| Inductance | 475 µH |
| Isolation Voltage | 3125 Vrms |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 470 mΩ |
| Show | |
| Size-Length | 6.73 mm |
| Size-Width | 10.05 mm |
| Size-Height | 4.19 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
