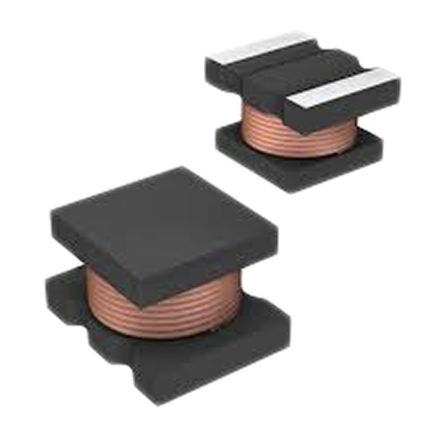

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

82103C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package (SI)	3225
Case/Package	1210
Current Rating	500 mA
Capacitance Tolerance	±10 %
Inductance	10 µH
Self Resonant Frequency	38 MHz
Q-Factor	35
Inductance Tolerance	±10 %
Test Frequency	0.01 MHz
DC Resistance (DCR)	≤400 mΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.4 Ω
	Show
Size-Length	3.2 mm
Size-Width	2.5 mm
Size-Height	2.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
