Description

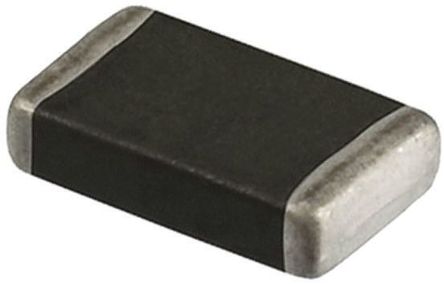

- The 82306050029 from Wurth Elektronik is an ESD suppressor in 0603 standard size. This device is used for protection of data lines, bus systems and semiconductors. It features fast response time, no leakage current and low clamping voltage. Typical applications include USB 2.0, HDMI, DVI, Ethernet, firewire and serial bus interfaces.
- No energy consumption in standby mode
- Excellent absorption for ESD impulses
- Operating temperature range from -40°C to 85°C
- Nickel barrier
- ESD protection in accordance with EN 61000-4-2 (8KV/15KV contact discharge)
- Working voltage of 5VDC
- Maximum clamping voltage of 30V
- Leakage current of 0.05µA
- Channel capacitance of 0.2pF
- 150V trigger voltage
82306050029 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 1608 |
| Case/Package | 0603 |
| Voltage Rating (DC) | 5.00 V |
| Operating Voltage | 5 V |
| Capacitance | 200 fF |
| Number of Circuits | 1 Circuit |
| Number of Positions | 2 Position |
| Clamping Voltage | 30 V |
| Test Current | 1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 0.8 mm |
| Size-Height | 0.9 mm |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
