Description

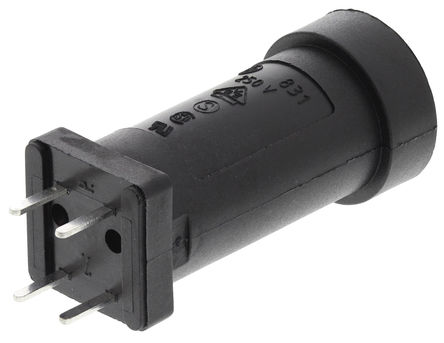

- The 83100000005 is a 16A/250V/2.5W enclosed Bayonet Fuse Holder with thermoplastic construction, tinned solder pin terminals and copper alloy corrosion protected metal. This 831-series PCB mount fuse holder is compatible with 5 x 20mm fuses.
- Black colour
- (4) Solder pins 0.5 x 1.1mm and plastic stud mounting
- Pins spaced at 5.08mm form a common connection
- 0.2mm² Minimum cross section conductor
- >1.5kV Dielectric strength
- IP40 Protection rating
- -25 to 70°C Operating temperature range
- UL94V-0 Flammability rating
- Cap sold separately
83100000005 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Current Rating | 6.3 A |
| Number of Circuits | 1 Circuit |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating | 250 V |
| Show | |
| Size-Length | 32.0 mm |
| Size-Width | 32.6 mm |
| Size-Height | 32.6 mm |
| Size-Diameter | 15.0 mm |
| Color | Black |
| Contact Material | Copper Alloy |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/06/16 |
| ECCN Code | EAR99 |
