Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 16 Pin |

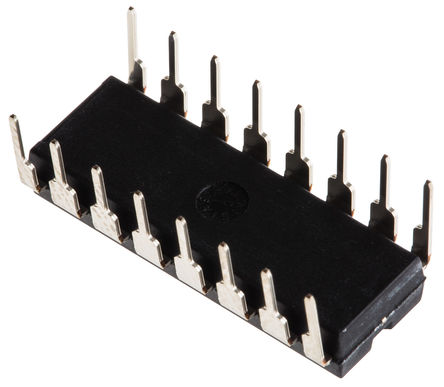

Case/Package | PDIP-16 |
Operating Voltage | 1.35V ~ 36V |
Supply Current | 460 µA |
Number of Circuits | 1 Circuit |
Number of Channels | 1 Channel |
Number of Positions | 16 Position |
Common Mode Rejection Ratio | 114 dB |
Quiescent Current | 460 µA |
Bandwidth | 150 kHz |
Slew Rate | 20.0 mV/μs |
Gain Bandwidth Product | 150 kHz |
Input Offset Voltage | 500 µV |
Input Bias Current | 10 nA |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -40 ℃ |
3dB Bandwidth | 150 kHz |
Gain Bandwidth | 4.5 kHz |
Minimum CMRR Range | 72 dB |
Supply Voltage (Max) | 30V ~ 50V |
Supply Voltage (Min) | 2.7 V |
Show | |
Size-Length | 19.3 mm |
Size-Width | 6.35 mm |
Size-Height | 4.57 mm |
Operating Temperature | -40℃ ~ 85℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
