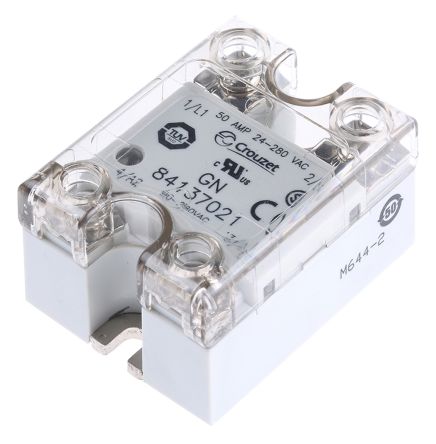

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

84137021 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	Hockey Puck
Output Current	50.0 A
Contacts Type	SPST-NO
Load Current	50 A
Load Current (Max)	50 A
Load Current (Min)	100 mA
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-20 ℃
Operating Voltage (Min)	24 VAC
Operating Voltage (Max)	280 VAC
Input Voltage	90VAC ~ 280VAC
	Show
Size-Length	44.45 mm
Size-Width	32.0 mm
Size-Height	32.87 mm
Operating Temperature	-20℃ ~ 80℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
