Description

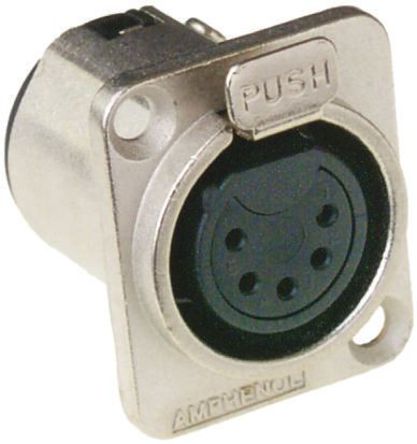

- The AC5FDZ is a 5-pole female XLR Audio Connector with silver-plated stamped contacts, nickel-plated zinc die-cast shell and D-size housing. The metal chassis mount Z series connector is designed for the audio user where durability, reliability and strength across a wide range of applications are important.
- Solder bucket connections
- 14AWG Maximum wire gauge
- 1400VAC RMS Test voltage
- * >=1000MR Insulation resistance
- IP40 Protection rating
- 1000 Mating cycles
- UL94V-0 Flammability rating
AC5FDZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Panel, Solder |
| Number of Pins | 5 Pin |
| Case/Package | Metal |
| Number of Contacts | 5 Contact |
| Gender | Female |
| Contact Plating | Silver |
| Voltage Rating (DC) | 133 V |
| Voltage Rating (AC) | 50.0 V |
| Current Rating | 7.5 A |
| Insulation Resistance | 1000 MΩ |
| Orientation | Straight |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 5 Position |
| Contact Resistance | 3.00 mΩ |
| Number of Mating Cycles | 1000 Cycle |
| Current Rating (Max) | 7.5 A |
| Operating Temperature (Max) | 75 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating (Max) | 133 VAC |
| Maximum Contact Resistance (Max) | 3 mΩ |
| Show | |
| Size-Length | 26 mm |
| Size-Height | 31 mm |
| Color | Nickel |
| Contact Material | Phosphor Bronze |
| Operating Temperature | -25℃ ~ 75℃ |
| Product Lifecycle Status | Active |
| Packaging | Bag |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
