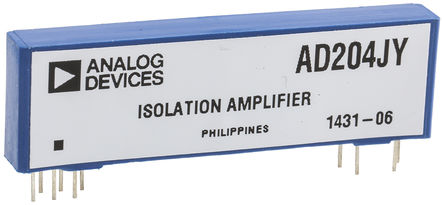

- AD204JY - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC3253959
-
Category:Amplifier, Buffer IC
-
Package:SIP-10
-
Datasheet:Datasheet 3D Model
-
Description:Amplifier; Miniature Isolation; 5kHz; + 0.5% (Typ.); + 30pA @ 25℃; 130dB
-
Stock Locations:
-
Availability:247 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 134.6
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD204 is a general purpose, two-port, transformer-coupled isolation amplifier that may be used in a broad range of applications where input signals must be measured, processed and/or transmitted without a galvanic connection. This industry standard isolation amplifier offers a complete isolation function, with both signal and power isolation provided for in a single compact plastic SIP or DIP style package. The AD204 is powered by an externally supplied clock, such as the recommended AD246 Clock Driver.
- The AD204 provides total galvanic isolation between the input and output stages of the isolation amplifier through the use of internal transformer-coupling. The functionally complete AD204 eliminates the need for an external, user-supplied dc/dc converter. This permits the designer to minimize the necessary circuit overhead and consequently reduce the overall design and component costs.
- The design of the AD204 emphasizes maximum flexibility and ease of use, including the availability of an uncommitted op amp on the input stage. It features a bipolar ±5 V output range, an adjustable gain range of from 1 to 100 V/V, ±0.025% max nonlinearity (K grade), 130 dB of CMR and consumes a low 35 mW of power.
- **Applications**
- Multichannel Data Acquisition
- Current Shunt Measurements
- Motor Controls
- Process Signal Isolation
- High Voltage Instrumentation Amplifier
- ### Features and Benefits
- Small Size: 4 Channels/Inch
- Low Power; 35 mW
- High Accuracy: ±0.025% Max
- Nonlinearity (K Grades)
- High CMR: 130 dB (Gain = 100 V/V)
- Wide Bandwidth: 5 kHz Full-Power
- High CMV Isolation: ±2000 V pk
- Continuous (K Grade)
- (Signal and Power)
- Isolated Power Outputs
- Uncommitted Input Amplifier
AD204JY Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 11 Pin |
| Case/Package | SIP-10 |
| Supply Voltage (DC) | 15.0 V |
| Number of Circuits | 4 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 11 Position |
| Common Mode Rejection Ratio | 130 dB |
| Bandwidth | 5 kHz |
| Gain Bandwidth Product | 5 kHz |
| Isolation Voltage | 750 V |
| Input Offset Voltage | 15 mV |
| Input Bias Current | 30 pA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Gain Bandwidth | 5 kHz |
| Minimum CMRR Range | 130 dB |
| Show | |
| Size-Length | 52.8 mm |
| Size-Width | 6.3 mm |
| Size-Height | 15.9 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
