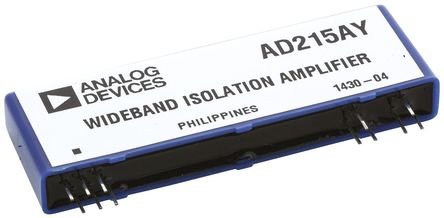

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The AD215AY is a high speed input Isolation Amplifier designed to isolate and amplify wide bandwidth analog signals. The innovative circuit and transformer design of the AD215 ensures wideband dynamic characteristics while preserving key DC performance specifications. The AD215 provides complete galvanic isolation between the input and output of the device including the user-available front-end isolated power supplies. The functionally complete design, powered by a ±15VDC supply, eliminates the need for user supplied isolated DC/DC converter. The design of the AD215 emphasizes maximum flexibility and ease of use in a broad range of applications where fast analog signals must be measured under high common-mode voltage (CMV) conditions. The AD215 has a ±10V input/output range, a specified gain range of 1V/V to 10V/V, a buffered output with offset trim and user-available isolated front-end power supply which produces ±15VDC at ±10mA.
- High speed dynamic characteristics
- Flexible input and buffered output stages
- High accuracy
- Excellent common-mode performance
- ±15VDC at ±10mA Isolated power supply
- 1500V RMS Isolation voltage rating
- 6V/ms Rapid slew rate
- 9ms Fast settling time
- -80dB at 1kHz Low harmonic distortion
- ±0.005% Low nonlinearity
- ESD sensitive device, electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.
AD215AY Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 12 Pin |
| Case/Package | SIP-44 |
| Supply Current | 40 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 12 Position |
| Common Mode Rejection Ratio | 100 dB |
| Bandwidth | 120 kHz |
| Slew Rate | 6.00 V/μs |
| Isolation Voltage | 1000 V |
| Input Offset Voltage | 400 µV |
| Input Bias Current | 300 pA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 120 kHz |
| Supply Voltage (Max) | 30V ~ 50V |
| Supply Voltage (Min) | 14.25 V |
| Show | |
| Size-Length | 63 mm |
| Size-Width | 8.3 mm |
| Size-Height | 21.4 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2017/07/07 |
