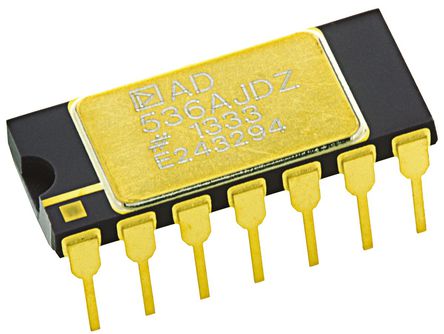

Image is for your reference only,please check specifications for details

AD536AJDZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1157959
Category:
AC to DC Converter, AC/DC Power Module
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD536AJDZ RMS to DC Converter, 0.5%, 45kHz, 0 °C, 70℃, DIP, 14Pins
Stock Locations:
Availability:
294 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 72.25

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD536A series complete Monolithic IC performs true RMS-to-DC conversion. It is performance comparable or superior to that of hybrid or modular units costing much more. The AD536A directly computes the true RMS value of any complex input waveform containing AC and DC components. A crest factor compensation scheme allows measurements with 1% error at crest factors up to 7. The wide bandwidth of the device extends the measurement capability to 300kHz with less than 3dB errors for signal levels greater than 100mV. An important feature of the AD536A, not previously available in RMS converters, is an auxiliary dB output pin. The logarithm of the RMS output signal is brought out to a separate pin to allow the dB conversion, with useful dynamic range of 60dB. Using an externally supplied reference current, the 0dB level can be conveniently set to correspond to any input level from 0.1 to 2Vrms.
Wide response capability
True RMS-to-DC conversion
dB output with 60dB range
1.2mA Quiescent current low power
Single- or dual-supply operation
Monolithic integrated circuit

Show

AD536AJDZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Frequency	2 MHz
Power Rating	500 mW
Output Current	5 mA
Supply Current	1.2 mA
Number of Channels	1 Channel
Number of Positions	14 Position
Power Dissipation	500 mW
Bandwidth	45 kHz
Output Current (Min)	5 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
3dB Bandwidth	2300 kHz
Power Dissipation (Max)	500 mW
Accuracy	0.5 %
Supply Voltage	5V ~ 36V
Input Voltage	15 V
	Show
Size-Length	19.94 mm
Size-Width	7.87 mm
Size-Height	5.08 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
