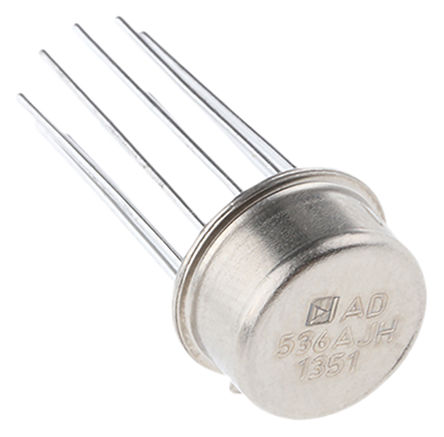

Image is for your reference only,please check specifications for details

AD536AJH - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC513864
Category:
Power Supply Accessory
Package:
TO-100-10
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD536AJH RMS to DC Converter, 0.5%, 2MHz, 0 °C, 70℃, TO-100, 10Pins
Stock Locations:
Availability:
147 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 29.24

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

GENERAL DESCRIPTION
The AD536A is a complete monolithic integrated circuit that performs true rms-to-dc conversion. It offers performance comparable or superior to that of hybrid or modular units costing much more. The AD536A directly computes the true rms value of any complex input waveform containing ac and dc components.
A crest factor compensation scheme allows measurements with 1% error at crest factors up to 7. The wide bandwidth of the device extends the measurement capability to 300 kHz with less than 3 dB errors for signal levels greater than 100 m V.
FEATURES
True rms-to-dc conversion
Laser trimmed to high accuracy
±0.2% maximum error (AD536AK)
±0.5% maximum error (AD536AJ)
Wide response capability
Computes rms of ac and dc signals
450 kHz bandwidth: V rms > 100 mV
2 MHz bandwidth: V rms > 1 V
Signal crest factor of 7 for 1% error
dB output with 60 dB range
Low power: 1.2 mA quiescent current
Single- or dual-supply operation
Monolithic integrated circuit
−55°C to +125°C operation (AD536AS)

Show

AD536AJH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	10 Pin
Case/Package	TO-100-10
Output Current	5 mA
Supply Current	1.2 mA
Number of Channels	1 Channel
Number of Positions	10 Position
Power Dissipation	500 mW
Bandwidth	2 MHz
Output Current (Min)	5 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
3dB Bandwidth	2300 kHz
Power Dissipation (Max)	500 mW
Accuracy	0.5 %
Supply Voltage	5V ~ 36V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	5 V
	Show
Size-Length	9.4 mm
Size-Width	9.4 mm
Size-Height	4.7 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
