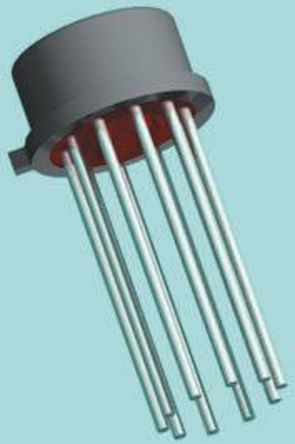

AD537JH - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC353100
Category:
Analog to Digital, ADC IC
Package:
TO-100-10
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD537JH Voltage to Frequency Converter, 150kHz, 0Hz to 150kHz, 0.05%, 5V to 36V, TO-100, 10Pins
Stock Locations:
Availability:
225 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 26.59

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD537JH is a monolithic Voltage-to-frequency Converter consisting of an input amplifier, a precision oscillator system, an accurate internal reference generator and a high current output stage. Only a single external RC network is required to set up any full-scale (F.S.) frequency up to 100kHz and any F.S. input voltage up to ±30V. Linearity error is as low as ±0.05% for 10kHz F.S. and operation is guaranteed over an 80dB dynamic range. The overall temperature coefficient (excluding the effects of external components) is typically ±30ppm/°C. The AD537 operates from a single supply of 5 to 36V and consumes only 1.2mA quiescent current. A temperature-proportional output, scaled to 1.00mV/K, enables the circuit to be used as a reliable temperature-to-frequency converter; in combination with the fixed reference output of 1.00V, offset scales such as 0°C or 0°F can be generated.
Versatile input amplifier
Positive or negative voltage modes
Negative current mode
High input impedance, low drift
Thermometer output ( mV/K)

Show

AD537JH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	10 Pin
Case/Package	TO-100-10
Frequency	150 kHz
Supply Current	2.50 mA
Number of Positions	10 Position
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	5V ~ 36V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	9.4 mm
Size-Width	9.4 mm
Size-Height	4.7 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
