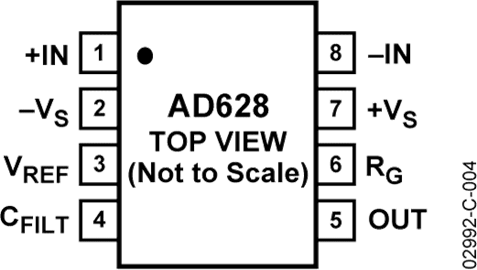

Image is for your reference only,please check specifications for details

AD628ARMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC230400
Category:
Amplifier, Buffer IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD628ARMZ Programmable/Variable Amplifier, 1Channels, 2 Amplifier, 30kHz, -40℃, 85℃, ± 2.25V to ± 18V
Stock Locations:
Availability:
253 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.29

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD628ARMZ is a high common-mode voltage programmable gain Difference Amplifier combines excellent DC performance with high common-mode rejection over a wide range of frequencies. When used to scale high voltages, it allows simple conversion of standard control voltages or currents for use with single-supply ADCs. A wideband feedback loop minimizes distortion effects due to capacitor charging of Σ-Δ ADCs. The AD628 has an input common mode and differential mode operating range of ±120V. The high common mode, input impedance makes the device well suited for high voltage measurements across a shunt resistor. The inverting input of the buffer amplifier is available for making a remote Kelvin connection.
High common-mode input voltage range
Gain range of 0.1 to 100
Excellent AC and DC performance
Indefinite output short-circuit duration
10µV/°C Maximum offset temperature stability RTI

Show

AD628ARMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Voltage (DC)	15.0 V
Operating Voltage	2.25V ~ 36V
Supply Current	1.6 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	75 dB
Bandwidth	30 kHz
Slew Rate	300 mV/μs
Input Offset Voltage	150 µV
Input Bias Current	1.5 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	600 kHz
Gain Bandwidth	440 kHz
Minimum CMRR Range	75 dB
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	2.25 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
