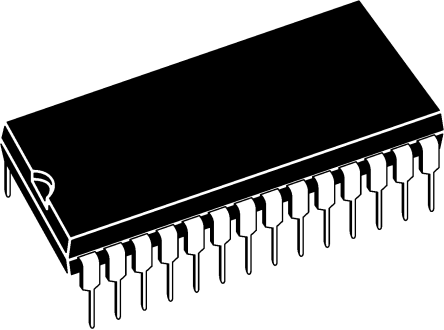

AD667JNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC271844
Category:
Digital to Analog, DAC IC
Package:
DIP-28
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD667JNZ Digital to Analog Converter, 12Bit, 500KSPS, Parallel, ± 11.4V to ± 16.5V, DIP, 28Pins
Stock Locations:
Availability:
211 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.82

Updated at 17/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD667JNZ is a complete voltage output 12-bit Digital-to-analog Converter (DAC) including a high stability buried Zener voltage reference and double-buffered input latch on a single chip. The converter uses 12 precision high speed bipolar current steering switches and a laser trimmed thin-film resistor network to provide fast settling time and high accuracy. Microprocessor compatibility is achieved by the on-chip double-buffered latch. The latch responds to strobe pulses as short as 100ns, allowing use with the fastest available microprocessors. The functional completeness and high performance in the AD667 results from a combination of advanced switch design, high speed bipolar manufacturing process and the proven laser wafer-trimming technology. The AD667 is trimmed at the wafer level and is specified to ±1/4LSB maximum linearity error at +25°C and ±1/2LSB over the full operating temperature range.
Single chip construction
Monotonicity guaranteed over temperature
Low power - 300mW including reference
TTL/5V CMOS compatible logic inputs
Low logic input currents

Show

AD667JNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	DIP-28
Supply Voltage (DC)	16.5V (max)
Operating Voltage	11.4V ~ 16.5V
Number of Outputs	1 Output
Supply Current	20.0 mA
Number of Channels	1 Channel
Number of Positions	28 Position
Number of Bits	12 Bit
Power Dissipation	300 mW
Sample Rate	500 ksps
Resolution (Bits)	12.0 Bit
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	300 mW
Number of DACs	1 DAC
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	11.4 V
	Show
Size-Length	39.75 mm
Size-Width	14.73 mm
Size-Height	4.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
