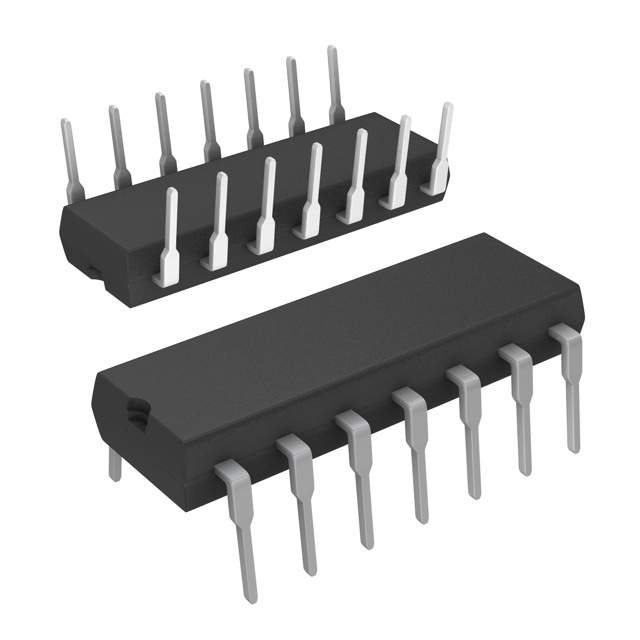

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD734 is an accurate high speed, four-quadrant analog multiplier that is pin-compatible with the industry-standard AD534 and provides the transfer function W = XY/U. The AD734 provides a low-impedance voltage output with a full-power (20 V pk-pk) bandwidth of 10 MHz. Total static error (scaling, offsets, and nonlinearities combined) is 0.1% of full scale. Distortion is typically less than -80 dBc and guaranteed. The low capacitance X, Y and Z inputs are fully differential. In most applications, no external components are required to define the function.
- The internal scaling (denominator) voltage U is 10 V, derived from a buried-Zener voltage reference. A new feature provides the option of substituting an external denominator voltage, allowing the use of the AD734 as a two-quadrant divider with a 1000:1 denominator range and a signal bandwidth that remains 10 MHz to a gain of 20 dB, 2 MHz at a gain of 40 dB and 200 kHz at a gain of 60 dB, for a gain-bandwidth product of 200 MHz.
- The advanced performance of the AD734 is achieved by a combination of new circuit techniques, the use of a high speed complementary bipolar process and a novel approach to laser-trimming based on ac signals rather than the customary dc methods. The wide bandwidth (>40 MHz) of the AD734"s input stages and the 200 MHz gain-bandwidth product of the multiplier core allow the AD734 to be used as a low distortion Modulator, Demodulator Wideband Gain Control, RMS-DC Conversion Voltage-Controlled Amplifiers, Oscillators, and Filters Demodulator with 40 MHz Input Bandwidth demodulator with input frequencies as high as 40 MHz as long as the desired output frequency is less than 10 MHz.
- The AD734AQ and AD734BQ are specified for the industrial temperature range of -40°C to +85°C and come in a 14-pin ceramic DIP. The AD734SQ/883B, available processed to MIL-STD- 883B for the military range of -55°C to +125°C, is available in a 14-pin ceramic DIP.
- ### Features and Benefits
- High Accuracy 0.1% Typical Error
- High Speed
- 10 MHz Full-Power Bandwidth
- 450 V/µs Slew Rate
- 200 ns Settling to 0.1% at Full Power
- Direct Division Mode 2 MHz BW at Gain of 100
- Low Distortion
- -80 dBc from Any Input
- Third-Order IMD Typically -75 dBc at 10 MHz
- Low Noise
- 94 dB SNR, 10 Hz to 20 kHz
- 70 dB SNR, 10 Hz to 10 MHz
AD734BN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | PDIP-14 |
| Output Current | 50 mA |
| Supply Current | 12.0 mA |
| Number of Circuits | 4 Circuit |
| Number of Bits | 4 Bit |
| Power Dissipation | 500 mW |
| Slew Rate | 450 V/μs |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 40 MHz |
| Power Dissipation (Max) | 500 mW |
| Input Voltage | 12.5 V |
| Show | |
| Size-Length | 16.89 mm |
| Size-Width | 7.24 mm |
| Size-Height | 3.43 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
