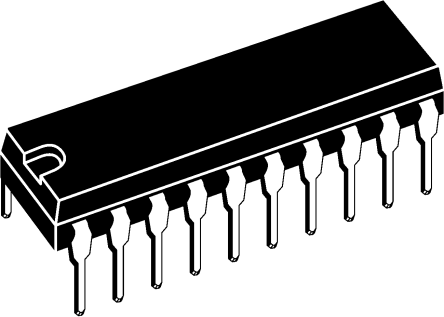

AD7628KNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC603604
Category:
Digital to Analog, DAC IC
Package:
DIP-20
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7628KNZ Digital to Analog Converter, 8Bit, 2.9MSPS, Parallel, 10.8V to 15.75V, DIP, 20Pins
Stock Locations:
Availability:
290 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.94

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD7628KNZ is a monolithic dual 8-bit Digital-to-analog Converter featuring excellent DAC-to-DAC matching. Separate on-chip latches are provided for DAC to allow easy microprocessor interface. Data is transferred into either of the two DAC data latches via a common 8-bit TTL/CMOS compatible input port. Control input DAC A/DAC B determines which DAC is to be loaded. The AD7628 load cycle is similar to the write cycle of a random access memory and the device is bus compatible with most 8-bit microprocessors. The device operates from a 12 to 15V power supply and is TTL-compatible over this range. It offers excellent four quadrant multiplication characteristics with a separate reference input and feedback resistor for each DAC.
20mW Low power dissipation
Latch free

Show

AD7628KNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Operating Voltage	10.8V ~ 15.75V
Number of Outputs	2 Output
Supply Current	2.00 mA
Number of Channels	2 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Power Dissipation	450 mW
Sample Rate	2.9 Msps
Resolution (Bits)	8.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	450 mW
Number of DACs	2 DAC
Supply Voltage	12V ~ 15V
	Show
Size-Length	26.16 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
