Image is for your reference only,please check specifications for details
- AD7690BRMZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC1004040
-
Category:Analog to Digital, ADC IC
-
Package:MSOP-10
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD7690BRMZ Analog to Digital Converter, 18Bit, 400KSPS, Single, 4.75V, 5.25V, SOP
-
Stock Locations:
-
Availability:227 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 37.61
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details

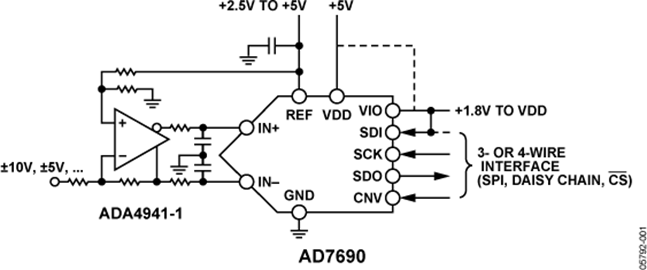

- The AD7690 is an 18-bit, successive approximation, analog-to-digital converter (ADC) that operates from a single power supply, VDD. It contains a low power, high speed, 18-bit sampling ADC with no missing codes, an internal conversion clock, and a versatile serial interface port. On the CNV rising edge, it samples the voltage difference between the IN+ and IN− pins. The voltages on these pins swing in opposite phase between 0 V and REF. The reference voltage, REF, is applied externally and can be set up to the supply voltage.
- The power of the AD7690 scales linearly with the throughput.
- The SPI-compatible serial interface also features the ability, using the SDI input, to daisy-chain several ADCs on a single, 3-wire bus and provides an optional busy indicator. It is compatible with 1.8 V, 2.5 V, 3 V, or 5 V logic, using the separate VIO supply.
- The AD7690 is housed in a 10-lead MSOP or a 10-lead QFN (LFCSP) with operation specified from −40°C to +85°C.
- **Applications**
- Battery-powered equipment
- Data acquisition
- Seismic data acquisition systems
- DVMs
- Instrumentation
- Medical instruments
- ### Features and Benefits
- 18-bit resolution with no missing codes
- Throughput: 400 kSPS
- INL: ±0.75 LSB typ, ±1.5 LSB max (±6 ppm of FSR)
- Dynamic range: 102 dB @ 400 kSPS
- Oversampled dynamic range: 125 dB @ 1 kSPS
- Noise-free code resolution: 20 bits @ 1 kSPS
- Effective resolution: 22.7 bits @ 1 kSPS
- SINAD: 101.5 dB @ 1 kHz
- THD: −125 dB @ 1 kHz
- True differential analog input range: ±VREF 0 V to VREF with VREF up to VDD on both inputs
- No pipeline delay
- Single-supply 5 V operation with 1.8 V/2.5 V/3 V/5 V logic interface
AD7690BRMZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | MSOP-10 |
| Digital Logic Level | SAR |
| Supply Voltage (DC) | 4.75V (min) |
| Supply Current | 1 nA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Bits | 18 Bit |
| Power Dissipation | 17 mW |
| Sample Rate | 400 ksps |
| Power Consumption | 17 mW |
| Resolution (Bits) | 18.0 Bit |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 20 mW |
| Number of Input Channels | 1 Channel |
| Supply Voltage | 4.75V ~ 5.25V |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
