Description
- Product Details

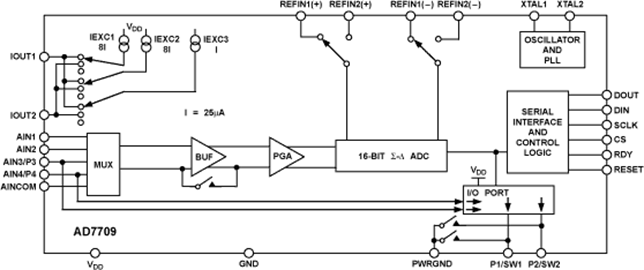

- The AD7709 is a complete analog front-end for low frequency measurement applications. The AD7709 contains a 16-bit sigma delta ADC with PGA and can be configured as 2 fully-differential input channels or 4 pseudo-differential input channels. Inputs signal ranges from 20mV to 2.56V can be directly converted using the AD7709. These signals can be converted directly from a transducer without the need for signal conditioning. Other on-chip features include three software configurable current sources, switchable reference inputs, low side power switches and a 4-bit digital I/O port.
- ### Features and Benefits
- 16-Bit Σ-Δ ADC
- Simultaneous 50 Hz and 60 Hz Rejection at 20 Hz Update Rate
- _VREF Select_ ™ Allows Absolute and Ratiometric Measurement Capability
- Programmable Gain Front End
- _ISOURCE Select_ ™
- 16-Bit No Missing Codes
- 13-Bit p-p Resolution @ 20 Hz, 20 mV Range
- 16-Bit p-p Resolution @ 20 Hz, 2.56 V Range
AD7709 Specifications
| Attribute | Attribute Value |
|---|---|
